Produktdetails

Features

• Pack of 20
• Suitable for cracked concrete and in seismic conditions – even in diamond cored holes included in ESR-4372 for sizes 1/2' to 1 1/4'

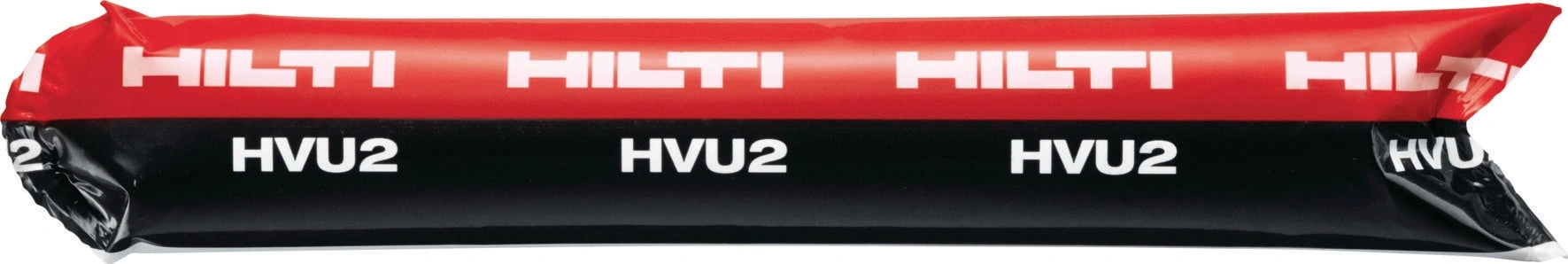

• Soft foil capsules are much tougher and more resilient than glass capsules – little to no risk of breakage

• Can be installed using impact drivers, drill drivers and hammer drills

• Automatic hole cleaning (SafeSet) with TE-CD and TE-YD drill bits in combination with a Hilti vacuum cleaner

• High performance in seismic and static conditions in cracked and uncracked concrete

Applications

• Anchoring steel structures (e.g. racking, guard rails, fences and gates)

• Anchoring in industry (e.g. machinery, elevators, cranes and industrial equipment)

• Anchoring applications requiring seismic qualification

• Anchoring items along roads and in tunnels (e.g. crash and noise barriers, overhead catenary systems)

• Anchoring at the edge of slabs or on narrow supports (e.g. beams, balconies)

Technical Data

• Anchoring elements: HIS-N internally threaded rods
• Approvals / Test reports: ICC-ES report (concrete), Seismic
• IBC compliance: IBC 2015, IBC 2018
• PROFIS Software: Yes
• Tested/approved for diamond drilling: Yes
• In-service temperature – range: -40 - 120 °C
• Storage and transportation temperature range: 5 - 25 °C
• Seismic loading: Yes
• Installation direction: All
• Cleaning procedures: Automatic Cleaning (SafeSet Hollow Drill Bit), Compressed-Air Cleaning
• Product Class: Ultimate

Documents

• Material Safety Datasheet
• Operating Instruction
• Technical Information
